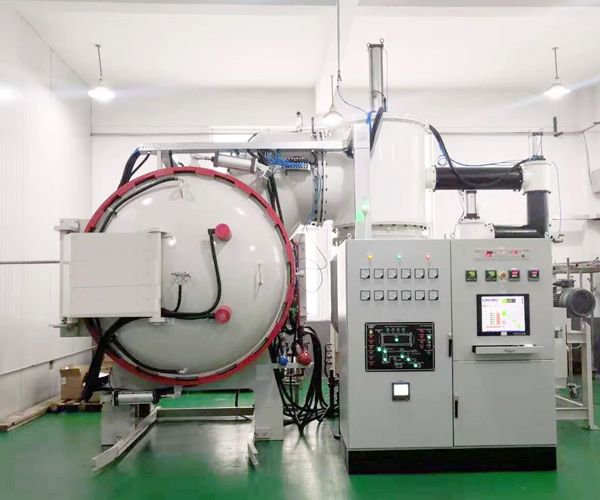

VACUUM BRAZING FURNACE

Vacuum Brazing Furnace

Vacuum brazing facility refers to a process of brazing metal without the use of brazing flux in a high vacuum environment. It is widely applied in the aerospace industry, satellite communication, electronics, medical technology, and nuclear fields, providing fluxless brazing, reduced toxic waste, and uniform temperature distribution.

Vacuum brazing facility refers to a process of brazing metal without the use of brazing flux in a high vacuum environment. Product Introduction Vacuum brazing facility is widely used as a sealing component for various types of aircraft engines in honeycomb structures. The honeycomb structure brazing process involves pre placing the brazing material in the honeycomb core, assembling the honeycomb with the shell, and finally using vacuum brazing method for brazing. The strength of the brazed joint is about 50% of the base material. The assembled stator blades of the aircraft engine compressor are also manufactured using this brazing method, Vacuum brazing facility consists of inner and outer rings and more than 10 blades connected as a whole through vacuum brazing. Soldering of metals occurs when the brazing material comes in contact with the diffusion metal components during the vacuum heat treatment. Finished products are bright and clean. Furthermore, vacuum soldering of parts is an environmentally friendly process. In absence of oxygen flux for soldering is required, the final product does not contain pores and is not oxidized. The vacuum soldering furnace offers one of the most reliable methods of connection products, having a number of advantages. These furnaces are particularly recommended for manufacturers of tools and complex parts.

APPLICATION OF VACUUM BRAZING FURNACE

• Aerospace industry
• Satellite communication
• Electronics technology.
• Medical technology.
• Nuclear fusion and fission.

ADVANTAGE OF VACUUM BRAZING FURNACE

• Fluxless brazing.
• No hazardous fumes or toxic waste.
• Uniformity of temperature..
• Excellent tensile and sealing.
• Synchronicity of vacuum brazing and heat treatment..

In addition, Vacuum brazing facility is also used in the manufacturing of components such as turbine guides, guide vanes, diffusers, flame tubes, and oil filters in aircraft engines.
